本文主要介绍了在k8s中使用有状态服务Statfulset方式部署一个redis 5.0.5 版本的集群

更新于 2021-03-20


创建相关文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
apiVersion: v1
kind: ConfigMap
metadata:
  name: redis-cluster
data:
  update-node.sh: |
    #!/bin/sh
    REDIS_NODES="/data/nodes.conf"
    sed -i -e "/myself/ s/[0-9]\{1,3\}\.[0-9]\{1,3\}\.[0-9]\{1,3\}\.[0-9]\{1,3\}/${POD_IP}/" ${REDIS_NODES}
    exec "$@"
  redis.conf: |+
    cluster-enabled yes
    cluster-require-full-coverage no
    cluster-node-timeout 15000
    cluster-config-file /data/nodes.conf
    cluster-migration-barrier 1
    appendonly yes
    protected-mode no
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis-cluster
spec:
  serviceName: redis-cluster
  replicas: 6
  selector:
    matchLabels:
      app: redis-cluster
  template:
    metadata:
      labels:
        app: redis-cluster
    spec:
      containers:
      - name: redis
        image: redis:5.0.5-alpine
        ports:
        - containerPort: 6379
          name: client
        - containerPort: 16379
          name: gossip
        command: ["/conf/update-node.sh", "redis-server", "/conf/redis.conf"]
        env:
        - name: POD_IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
        volumeMounts:
        - name: conf
          mountPath: /conf
          readOnly: false
        - name: data
          mountPath: /data
          readOnly: false
      volumes:
      - name: conf
        configMap:
          name: redis-cluster
          defaultMode: 0755
  volumeClaimTemplates:
  - metadata:
      name: data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      resources:
        requests:
          storage: 5Gi
      storageClassName: standard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
apiVersion: v1
kind: Service
metadata:
  name: redis-cluster
spec:
  type: ClusterIP
  ports:
  - port: 6379
    targetPort: 6379
    name: client
  - port: 16379
    targetPort: 16379
    name: gossip
  selector:
    app: redis-cluster

创建服务

执行下面的命令创建服务：

1
2
3
kubectl apply -f configmap.yaml
kubectl apply -f statefulset.yaml
kubectl apply -f service.yaml

初始化集群

将前三个节点作为主，后面节点作为从：

1
kubectl exec -it redis-cluster-0 -- redis-cli --cluster create --cluster-replicas 1 $(kubectl get pods -l app=redis-cluster -o jsonpath='{range.items[*]}{.status.podIP}:6379 ')

验证集群

使用下面的命令验证集群是否正常：

1
2
3

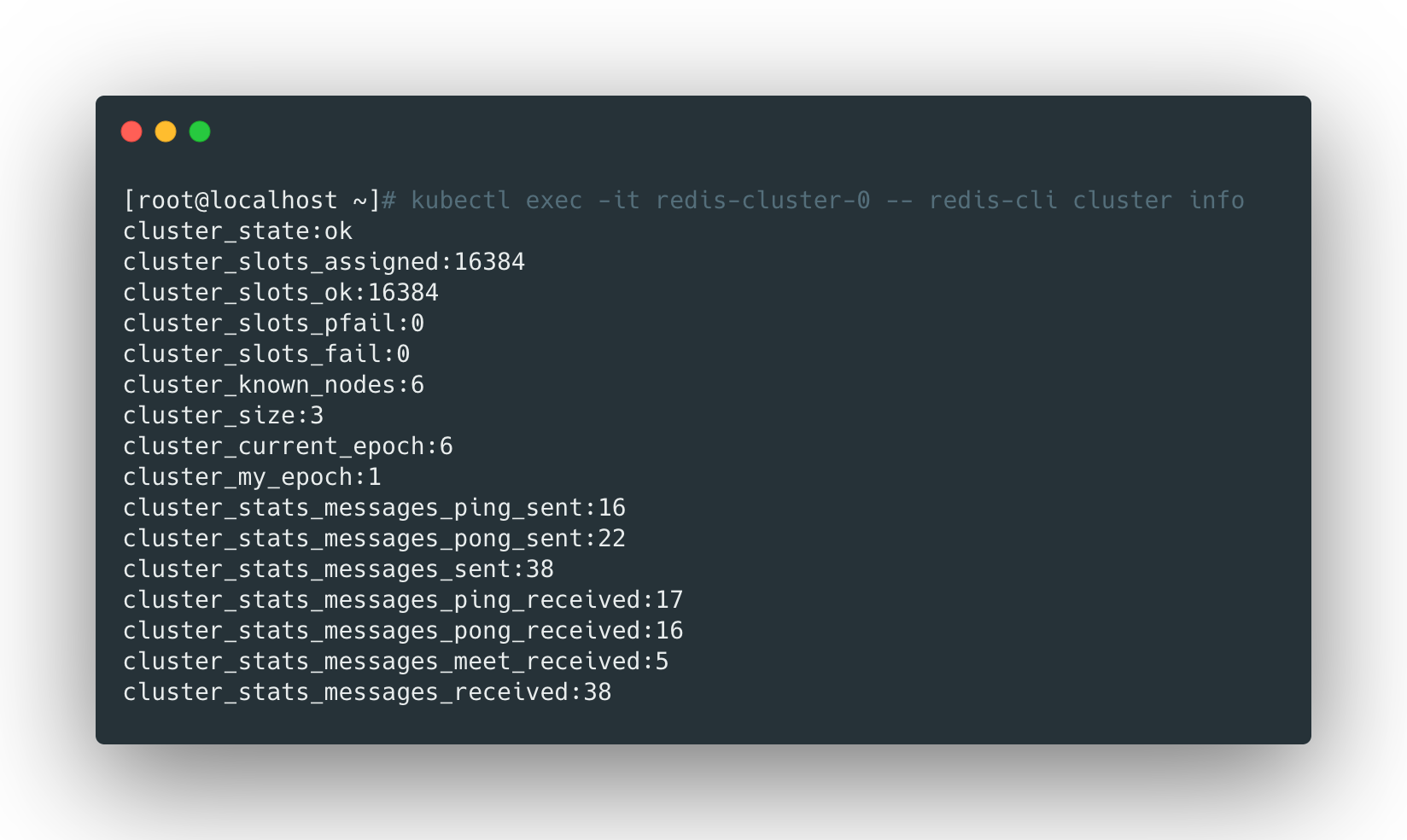

kubectl exec -it redis-cluster-0 -- redis-cli cluster info

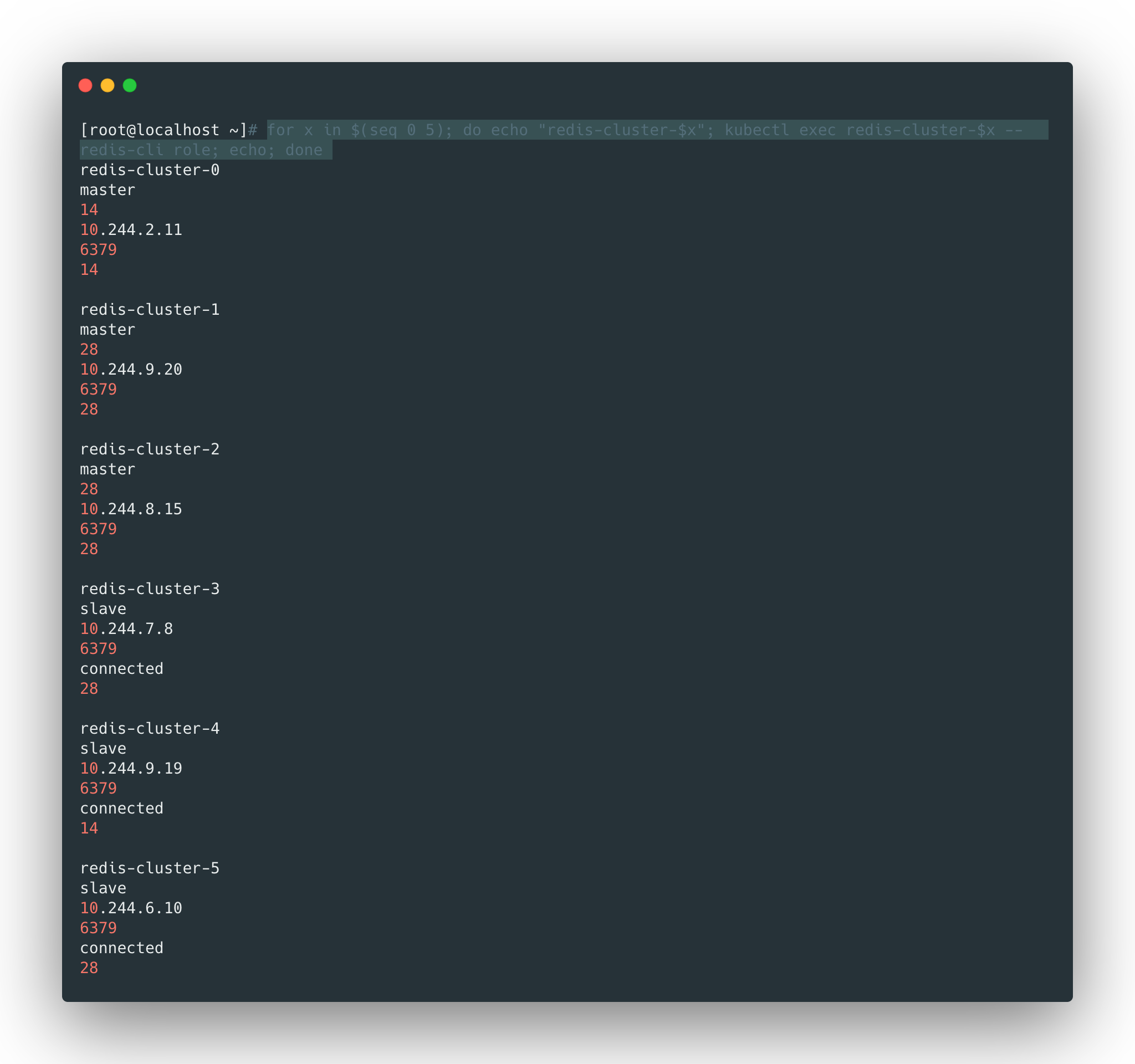

for x in $(seq 0 5); do echo "redis-cluster-$x"; kubectl exec redis-cluster-$x -- redis-cli role; echo; done
