本文主要介绍了在k8s中使用nfs作为存储，实现PV、PVC和storageclass

更新于 2021-03-21


安装NFS

直接使用yum命令安装nfs：

1
yum install -y nfs-utils rpcbind

创建nfs目录：

1
2
mkdir -p /opt/nfs/data
echo "/opt/nfs/data *(rw,no_root_squash)" >> /etc/exports

生产上应该给该目录挂载一个数据盘

启动nfs：

1
2
3
4
5
6
systemctl start rpcbind
systemctl status rpcbind
systemctl enable rpcbind
systemctl start nfs
systemctl status nfs
systemctl enable nfs

在k8s的node和master节点上，都安装nfs-utils：

1
yum install -y nfs-utils

nfs类型的volume

这种方式是直接在yaml中定义数据卷为nfs类型，示例如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-nfs
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx-nfs
  template:
    metadata:
      labels:
          app: nginx-nfs
    spec:
      containers:
      - name: nginx-nfs
        image: nginx
        volumeMounts:
        - name: wwwroot
          mountPath: /usr/share/nginx/html
        ports:
        - containerPort: 80
      volumes:
      - name: wwwroot
        nfs:
          server: 10.8.138.8
          path: /opt/nfs/data

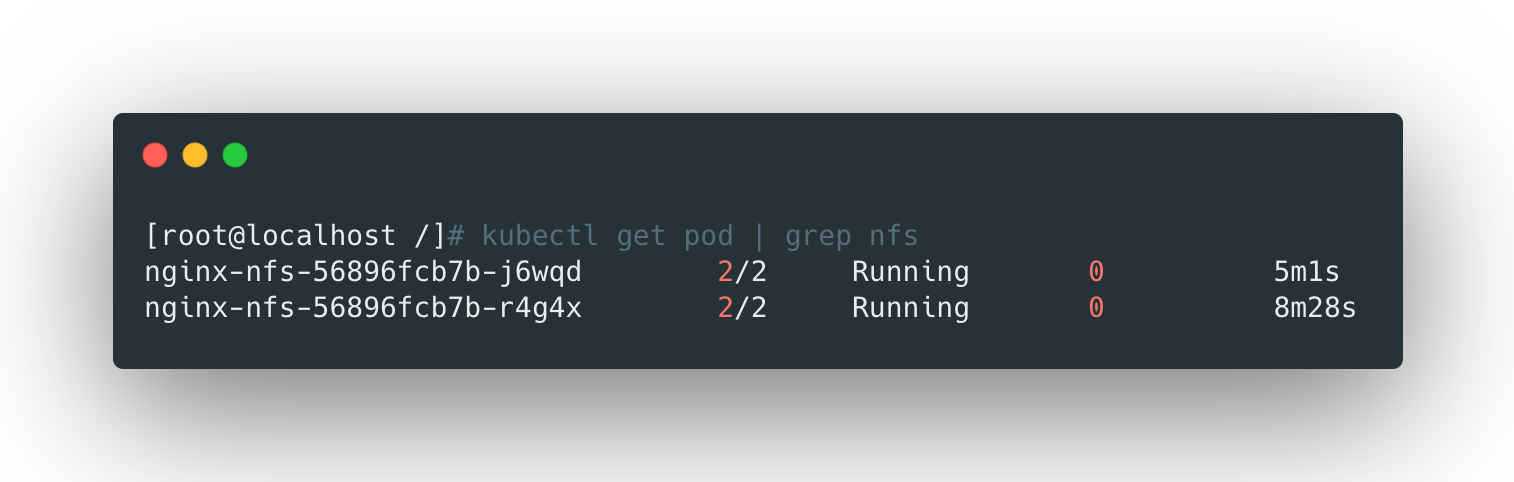

然后直接apply即可创建一个使用nfs类型volume的pod：

1
kubectl apply -f pod-nfs-volume.yaml

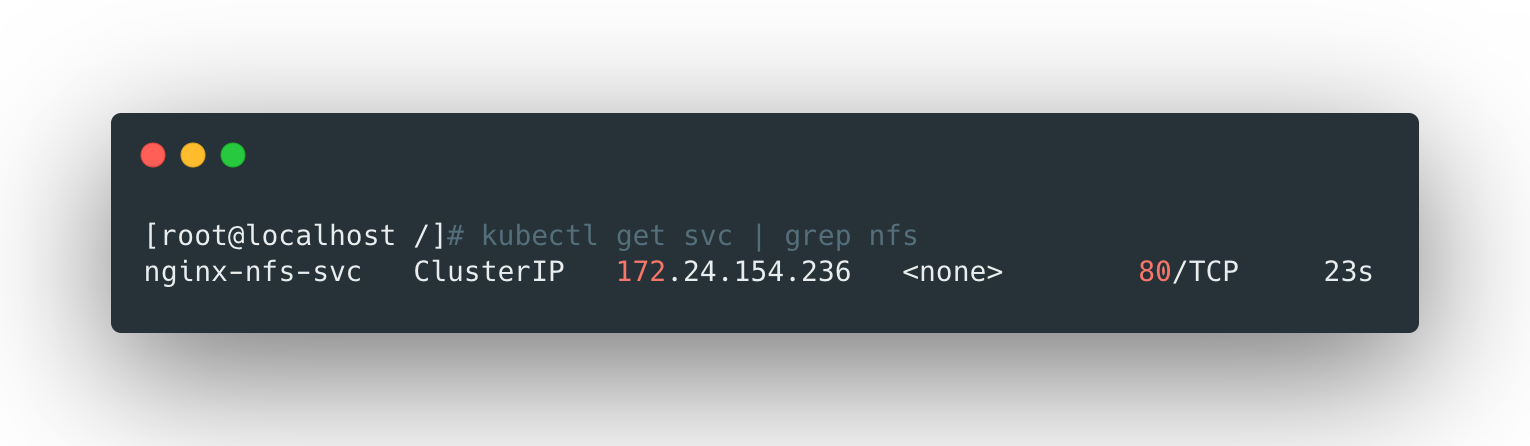

然后可以将这个pod作为service暴露出来：

1
2
3
4
5
6
7
8
9
10
11
12
apiVersion: v1
kind: Service
metadata:
  name: nginx-nfs-svc
  labels:
    app: nginx-nfs-svc
spec:
  ports:
  - port: 80
    targetPort: 80
  selector:
    app: nginx-nfs
1
kubectl apply -f pod-nfs-svc.yaml

验证访问的话，可以向nfs数据目录中放入一个html文件然后访问：


nfs类型的pv和pvc

创建PV

1
2
3
4
5
6
7
8
9
10
11
12
13
apiVersion: v1
kind: PersistentVolume
metadata:
  name: nfs-pv
spec:
  capacity:
    storage: 500Mi
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Recycle
  nfs:
    path: /opt/nfs/data
    server: 10.8.138.8

这里就创建了一个名为nfs-pv的pv，大小500Mi，其中指定了nfs的数据目录和nfs地址。

  • accessModes：pv访问模式，支持如下几个：
    • ReadWriteOnce：读写挂载在一个节点上；
    • ReadOnlyMany：只读挂载多个节点上；
    • ReadWriteMany：读写挂载在多个节点上；
  • persistentVolumeReclaimPolicy：回收策略，支持以下几个：
    • Retain：不作任何操作，需要手动删除（默认）
    • Recycle：没有pvc使用时清空数据让其他pvc使用；
    • Delete：删除；

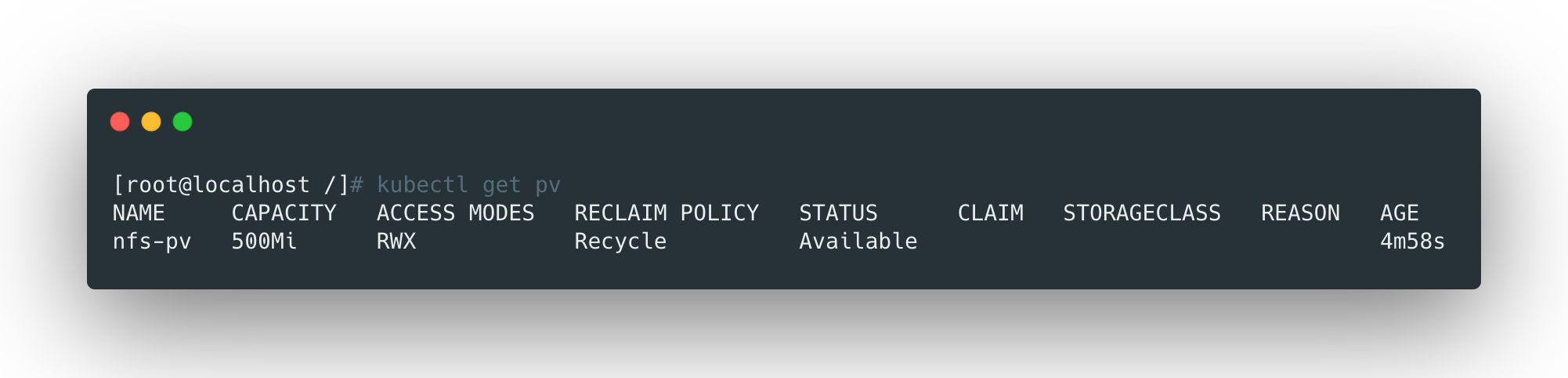

可以看到pv目前是可用状态。

创建PV

pod的直接消费对象为pvc而非pv，所以还需要创建pvc来绑定pv。

1
2
3
4
5
6
7
8
9
10
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc01
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 500Mi

这里就创建了一个大小为500Mi，名字为pvc01的pvc请求。

pvc是自动绑定pv的，有如下两个原则：

  • 根据pvc申请的容量，采用最小配原则匹配到合适的pv并绑定；
  • 根据访问模式匹配，绑定pv和pvc访问模式一致的；

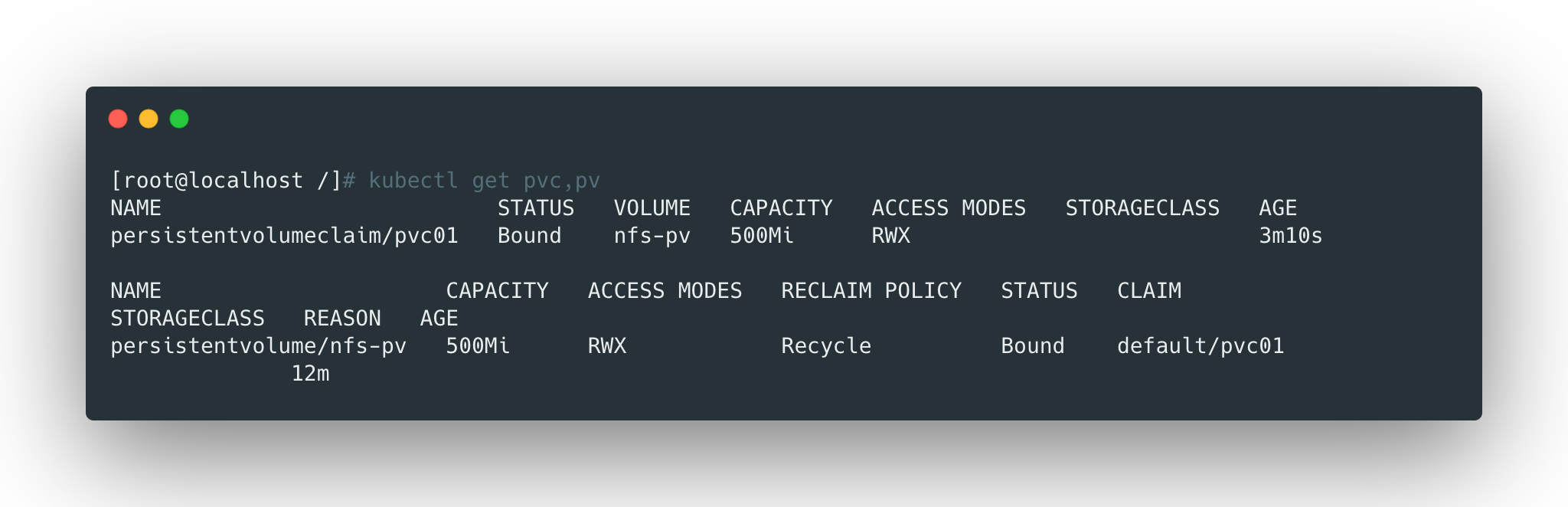

可以看到pvc和pv都是绑定状态了。

使用pvc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-nfs
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx-nfs
  template:
    metadata:
      labels:
          app: nginx-nfs
    spec:
      containers:
      - name: nginx-nfs
        image: nginx
        volumeMounts:
        - name: wwwroot
          mountPath: /usr/share/nginx/html
        ports:
        - containerPort: 80
      volumes:
      - name: wwwroot
        persistentVolumeClaim:
          claimName: pvc01

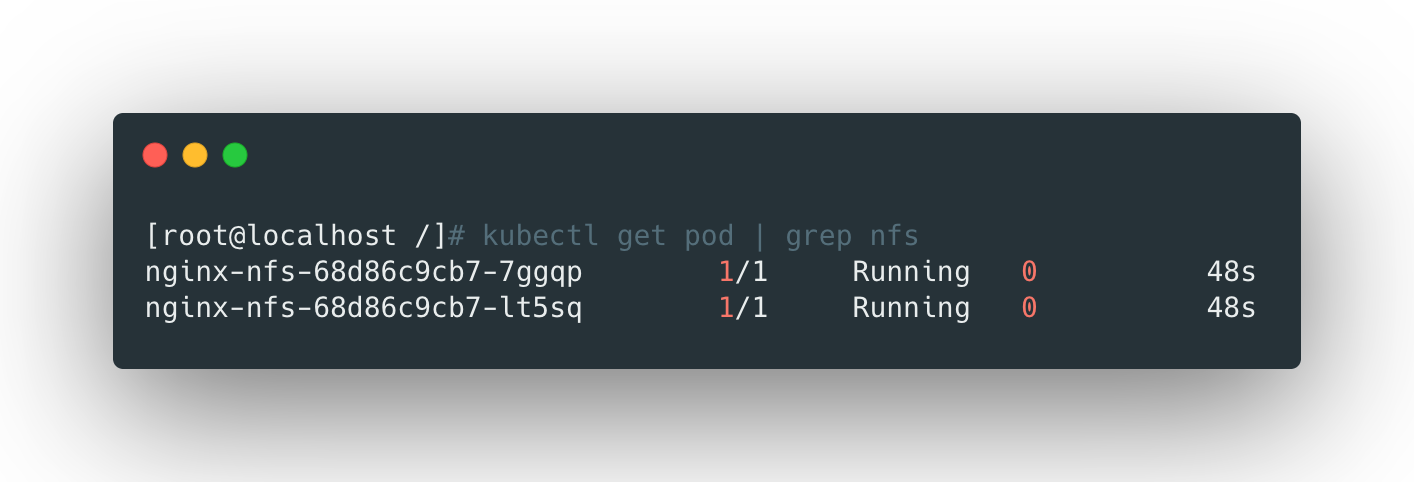

使用pvc的时候，只需要在volumes定义的时候制定pvc名称即可。


nfs类型的storageclass

nfs默认不支持storageclass，需要安装额外的插件

安装nfs-client插件

1
helm install nfs-storageclass --set nfs.server=10.8.138.8 --set nfs.path=/opt/nfs/data --namespace default  stable/nfs-client-provisioner

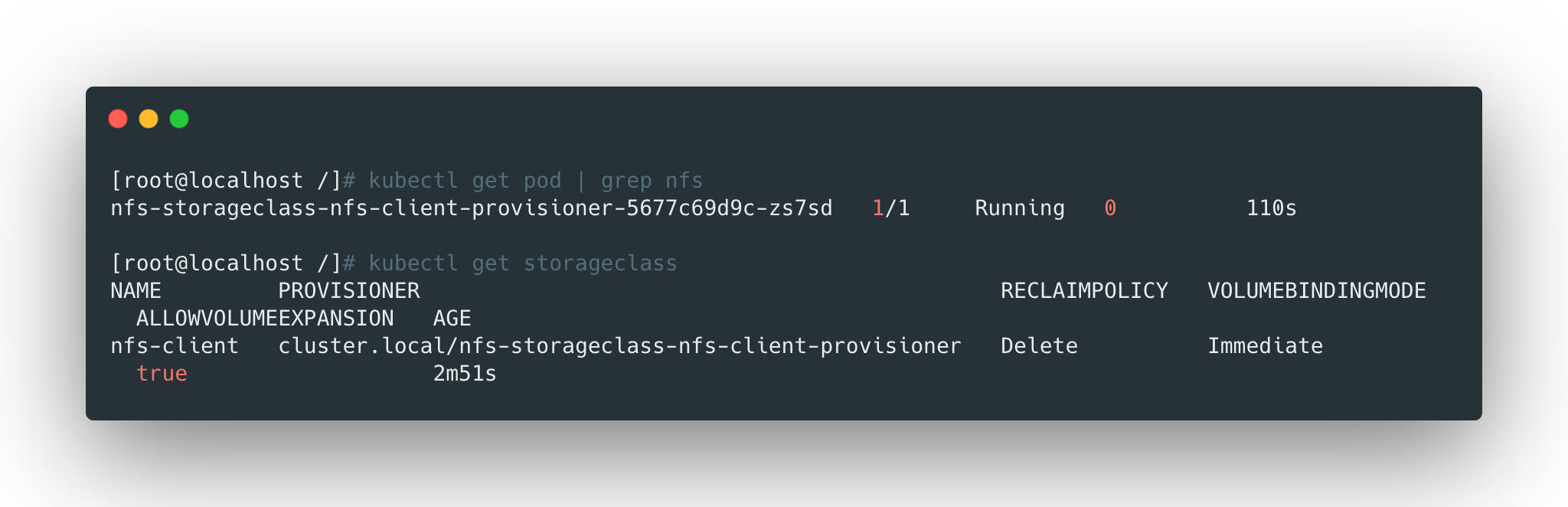

可以看到nfs-client服务已经创建，storageclass也已经创建了。

使用yaml文件方式安装，需要部署下面的三个yaml文件来安装nfs-client：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
# nfs-cluster-role.yaml
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    app: nfs-client-provisioner
  name: nfs-client-provisioner-runner
rules:
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]

---

kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    app: nfs-client-provisioner
  name: run-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    app: nfs-client-provisioner
  name: leader-locking-nfs-client-provisioner
  namespace: kube-system
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]

---

kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    app: nfs-client-provisioner
  name: leader-locking-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    namespace: kube-system
roleRef:
  kind: Role
  name: leader-locking-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
# nfs-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nfs-client-provisioner
  namespace: kube-system
  labels:
    app: nfs-client-provisioner
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      annotations:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccountName: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: "quay.io/external_storage/nfs-client-provisioner:v3.1.0-k8s1.11"
          imagePullPolicy: IfNotPresent
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: cluster.local/nfs-client-provisioner
            - name: NFS_SERVER
              value: 10.8.138.8
            - name: NFS_PATH
              value: /data/nfs-data
      volumes:
        - name: nfs-client-root
          nfs:
            server: 10.8.138.8
            path: /data/nfs-data
1
2
3
4
5
6
7
8
# nfs-service.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app: nfs-client-provisioner
  name: nfs-client-provisioner
  namespace: kube-system

直接运行这三个文件即可：

1
2
3
kubectl apply -f nfs-cluster-role.yaml
kubectl apply -f nfs-deployment.yaml
kubectl apply -f nfs-service.yaml

创建storageclass

使用类似下面的yaml文件可以创建其他的storageclass：

1
2
3
4
5
6
7
8
9
10
11
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: es-storageclass
  labels:
    app: nfs-client-provisioner
provisioner: cluster.local/nfs-client-provisioner
allowVolumeExpansion: true
reclaimPolicy: Retain
parameters:
  archiveOnDelete: "true"

pvc使用storageclass

1
2
3
4
5
6
7
8
9
10
11
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: testclaim
spec:
  storageClassName: "nfs-client"
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 100Mi

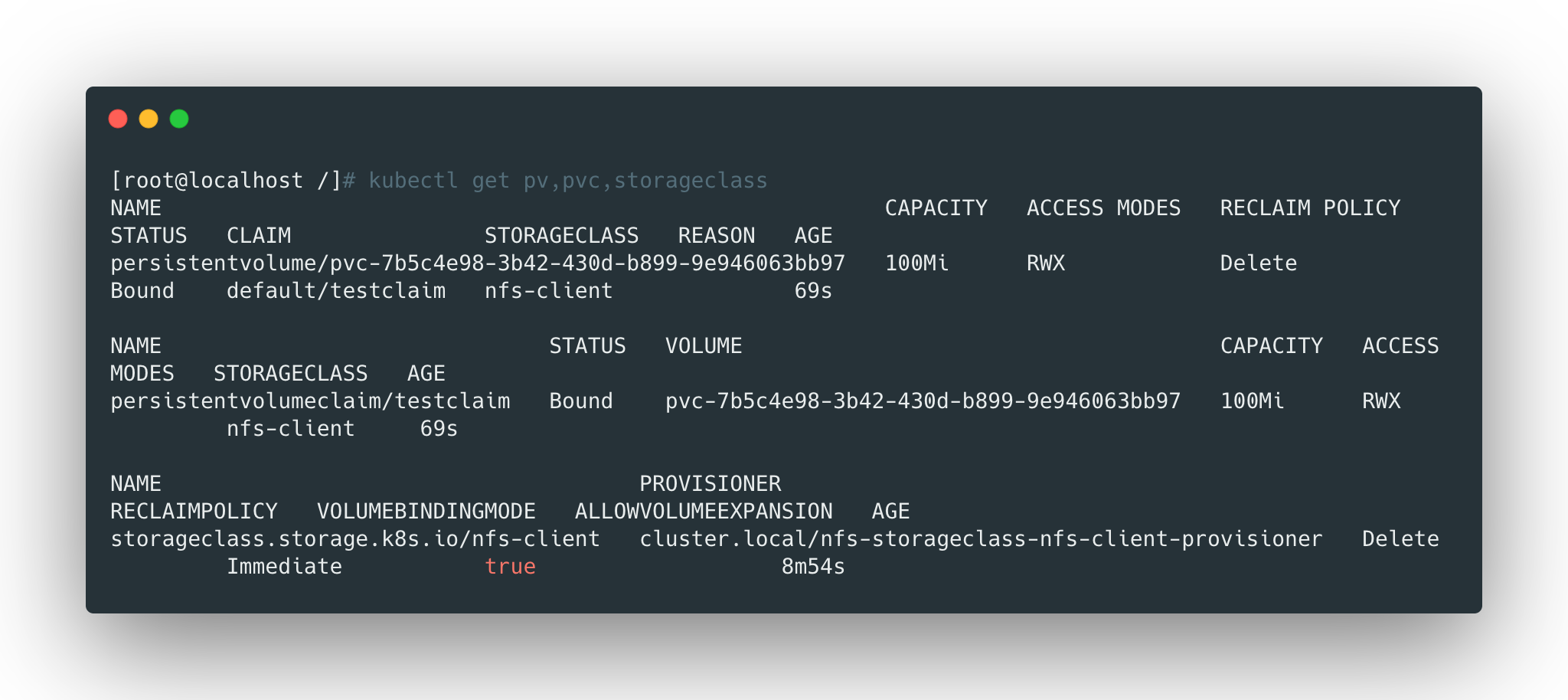

这里创建一个名为testclaim的100Mi的pvc，使用nfs-client这个storageclass。
