本文主要介绍了在k8s中使用filebeat、kafka、logstash、elasticsearch、kibana进行日志收集

更新于 2021-03-27


架构方案

架构

整体收集方案使用如下的组件：

  • filebeat：采集节点和容器日志，发送到kafka；
  • kafka：接收filebeat发送的日志消息；
  • logstash：从kafka中消费日志消息并进行处理；
  • elasticsearch：进行日志存储；
  • kibana：日志可视化展示；

日志文件 –> filebeat –> kafka –> logstash –> elasticsearch –> kibana

版本选择

  • filebeat：7.6.2；
  • kafka：2.12-2.5.0；
  • zookeeper：3.5.7；
  • logstash：7.8.0；
  • elasticsearch：7.8.0；
  • kibana：7.8.0；

方案可能存在的问题

这套日志收集方案可能存在下面的问题：

  • elasticsearch可能存在瓶颈（es还需要进一步调优）；
  • logstash会根据写入es的速度调整消息消费的速度，所有kafka有时候会出现消息堆积的情况；
  • ……

准备工作

这里使用nfs作为底层存储，相关的创建方法可以参考：在k8s中使用nfs存储，当然也可以使用其他的存储系统。

使用下面的yaml文件创建一个namespace：

1
2
3
4
5
# namesapce.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: logging
1
kubectl apply -f namespace.yaml

elasticsearch开启x-pack认证功能，这里将elasticsearch的密码保存在secret资源中：

1
2
3
espassword="elastic"

kubectl create secret generic es-logging-password --from-literal=elastic='elastic' -n logging

这里讲elasticsearch密码设置为：elastic


部署elasticsearch

部署相关资源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
# elasticsearch-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: es-logging-config
  namespace: logging
data:
  elasticsearch.yml: |
    cluster.name: es-logging-cluster
    node.name: ${NODE_NAME}
    network.host: 0.0.0.0
    http.port: 9200
    transport.port: 9300
    discovery.seed_hosts: ["es-logging-cluster"]
    cluster.initial_master_nodes:
      - es-logging-0
      - es-logging-1
      - es-logging-2
    xpack.monitoring.collection.enabled: true
    xpack.security.enabled: true
    xpack.license.self_generated.type: basic
    indices.lifecycle.history_index_enabled: false
    xpack.ilm.enabled: true

    cluster.routing.allocation.disk.threshold_enabled: false

    # xpack.security.transport.ssl.enabled: true
    # xpack.security.transport.ssl.verification_mode: certificate
    # xpack.security.transport.ssl.key: certs/es-logging-service.key
    # xpack.security.transport.ssl.certificate: certs/es-logging-service.crt
    # xpack.security.transport.ssl.certificate_authorities: certs/ca.crt
    # xpack.security.http.ssl.enabled: false
    # xpack.security.authc.realms:
    #   native.realm1:
    #     order: 0
  es_check.sh: >
    #!/bin/bash

    ES_REST_BASEURL=http://localhost:9200

    EXPECTED_RESPONSE_CODE=200

    max_time=${READINESS_PROBE_TIMEOUT:-30}


    function check_if_ready() {
      path="$1"
      err_msg="$2"
      response_code=$(curl -s -k --head \
          -u elastic:${ELASTIC_PASSWORD} \
          --max-time $max_time \
          -o /dev/null \
          -w '%{response_code}' \
          "${ES_REST_BASEURL}${path}")

      if [ "${response_code}" != ${EXPECTED_RESPONSE_CODE} ]; then
        echo "${err_msg} [response code: ${response_code}]"
        exit 1
      fi
      exit 0
    }


    check_if_ready "/" "Elasticsearch node is not ready to accept HTTP requests yet"

配置中的相关参数解释：

  • cluster.name：设置es集群名称，用于唯一标识一个集群；
  • network.host：监听的地址；
  • discovery.seed_hosts：节点发现方式；
  • xpack.security.enabled起用xpack安全组件；
  • cluster.routing.allocation.disk.threshold_enabled是否启动磁盘分配器；

cluster.routing.allocation.disk.threshold_enabled这个参数这里设置为false，表示关闭磁盘分配器，这样es可以使用全部磁盘空间。默认情况下当磁盘空间大于85%后，es就不能再创建分片了。这个参数在es使用同一个后端存储的时候应该调节一下。相关文档

es启用了x-pack密码认证，并且通过脚本检查es是否正常启动。我这里将es https通信方式注释掉了，如果有需要可以生成相关证书并起用https配置。直接运行下面的命令创建es配置：

1
kubectl apply -f elasticsearch-config.yaml

使用下面的yaml文件创建一个namespace：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
# elasticsearch-cluster.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  labels:
    app: es-logging
  name: es-logging
  namespace: logging
spec:
  replicas: 3
  selector:
    matchLabels:
      app: es-logging
  serviceName: es-logging-cluster
  template:
    metadata:
      labels:
        app: es-logging
      name: es-logging
    spec:
    #   affinity:
    #     podAntiAffinity:
    #       requiredDuringSchedulingIgnoredDuringExecution:
    #         - labelSelector:
    #             matchExpressions:
    #               - key: app
    #                 operator: In
    #                 values:
    #                   - es-logging
    #           topologyKey: kubernetes.io/hostname
      containers:
        - env:
            - name: NODE_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: POD_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.podIP
            - name: ES_JAVA_OPTS
              value: '-Xms2g -Xmx2g'
            - name: TZ
              value: Asia/Shanghai
            - name: ELASTIC_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: elastic
                  name: es-logging-password
          image: 'docker.elastic.co/elasticsearch/elasticsearch:7.8.0'
          imagePullPolicy: IfNotPresent
          livenessProbe:
            exec:
              command:
                - sh
                - '-c'
                - /usr/share/elasticsearch/config/es_check.sh
            failureThreshold: 3
            initialDelaySeconds: 60
            periodSeconds: 20
            successThreshold: 1
            timeoutSeconds: 1
          name: es-logging
          ports:
            - containerPort: 9200
              name: tcp-9200
              protocol: TCP
            - containerPort: 9300
              name: tcp-9300
              protocol: TCP
          readinessProbe:
            exec:
              command:
                - sh
                - '-c'
                - /usr/share/elasticsearch/config/es_check.sh
            failureThreshold: 3
            initialDelaySeconds: 15
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          resources:
            limits:
              cpu: '2'
          volumeMounts:
            - mountPath: /usr/share/elasticsearch/data
              name: es7x-data
            - mountPath: /usr/share/elasticsearch/config/elasticsearch.yml
              name: es7x-config
              subPath: elasticsearch.yml
            - mountPath: /usr/share/elasticsearch/config/es_check.sh
              name: es7x-config
              subPath: es_check.sh
            # - mountPath: /usr/share/elasticsearch/config/certs
            #   name: es-certs
            #   readOnly: true
        - env:
            - name: NODE_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: POD_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.podIP
            - name: TZ
              value: Asia/Shanghai
            - name: ELASTIC_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: elastic
                  name: es-logging-password
            - name: ES_URI
              value: 'http://elastic:$(ELASTIC_PASSWORD)@localhost:9200'
            - name: ES_INDICES
              value: 'true'
            - name: ES_ALL
              value: 'true'
            - name: ES_INDICES_SETTINGS
              value: 'true'
          image: 'justwatch/elasticsearch_exporter:1.1.0'
          imagePullPolicy: IfNotPresent
          name: elasticsearch-exporter
          ports:
            - containerPort: 9114
              name: tcp-9114
              protocol: TCP
          resources:
            limits:
              cpu: 200m
              memory: 200Mi
      dnsPolicy: ClusterFirst
      initContainers:
        - command:
            - sysctl
            - '-w'
            - vm.max_map_count=262144
          image: 'busybox:1.31.0'
          imagePullPolicy: IfNotPresent
          name: increase-vm-max-map
          securityContext:
            privileged: true
            runAsUser: 0
        - command:
            - sh
            - '-c'
            - ulimit -n 65536
          image: 'busybox:1.31.0'
          imagePullPolicy: IfNotPresent
          name: increase-fd-ulimit
          securityContext:
            privileged: true
            runAsUser: 0
    #   nodeSelector:
    #     node-role.kubernetes.io/compute: 'true'
      restartPolicy: Always
      securityContext:
        fsGroup: 1000
        runAsUser: 1000
        seLinuxOptions:
          level: 's0:c13,c12'
    #   serviceAccount: es-logging-sa
    #   serviceAccountName: es-logging-sa
      terminationGracePeriodSeconds: 10
      volumes:
        - configMap:
            defaultMode: 493
            name: es-logging-config
          name: es7x-config
        # - name: es-certs
        #   secret:
        #     defaultMode: 420
        #     secretName: es-logging-certs
  updateStrategy:
    type: RollingUpdate
  volumeClaimTemplates:
    - metadata:
        labels:
          name: es-logging
        name: es7x-data
      spec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 20Gi
        storageClassName: logging-storageclass

es集群使用了statefulset方式部署，其中storageclasslogging-storageclass需要自己手动创建，执行下面的命令完成部署。

1
kubectl apply -f elasticsearch-cluster.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
# elasticsearch-service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: es-logging
  name: es-logging-service
  namespace: logging
spec:
  ports:
    - name: tcp-9200
      port: 9200
      protocol: TCP
      targetPort: 9200
  selector:
    app: es-logging
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: es-logging
    monitor-app: elasticsearch-exporter
  name: es-logging-cluster
  namespace: logging
spec:
  clusterIP: None
  ports:
    - name: tcp-9300
      port: 9300
      protocol: TCP
      targetPort: 9300
    - name: tcp-9114
      port: 9114
      protocol: TCP
      targetPort: 9114
  selector:
    app: es-logging
  sessionAffinity: None
  type: ClusterIP

执行下面的命令完成部署：

1
kubeclt apply -f elasticsearch-service.yaml

检查

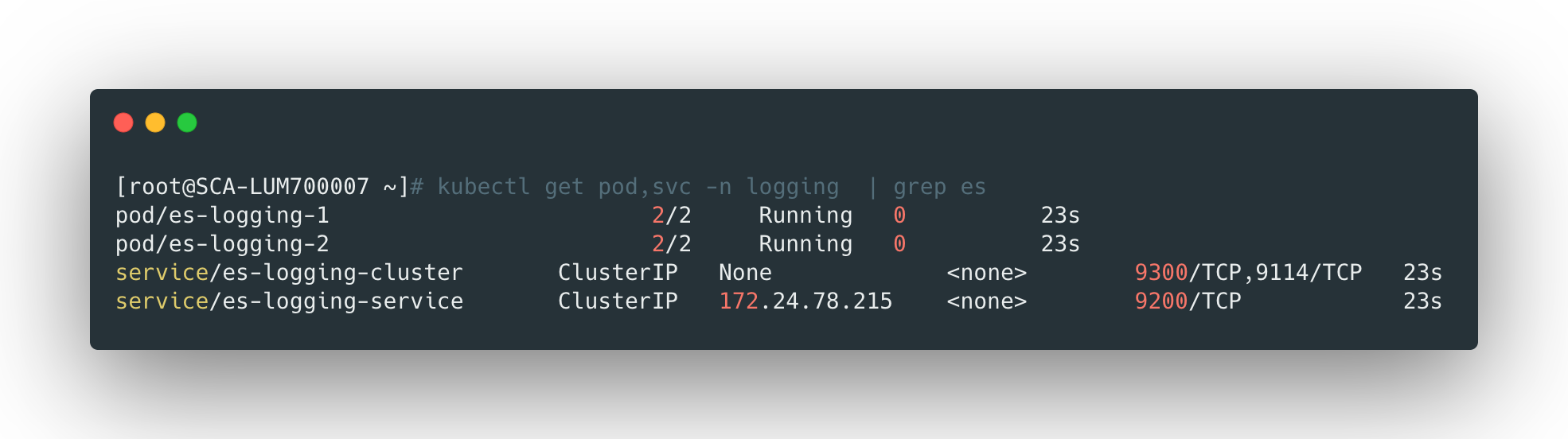

首先确保所有的pod都处于running状态：

1
kubectl get pod -n logging | grep es

然后执行下面的命令：

1
kubectl logs -f es-logging-1 -n logging -c es-logging

如果输出的日志中有Cluster health status changed from [YELLOW] to [GREEN]，说明集群正常了。


部署kafka

部署zookeeper

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
# zookeeper-cluster.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: zk-logging
  namespace: logging
spec:
  podManagementPolicy: Parallel
  replicas: 3
  selector:
    matchLabels:
      app: zk-logging
  serviceName: zk-logging-headless
  template:
    metadata:
      labels:
        app: zk-logging
    spec:
    #   affinity:
    #     podAntiAffinity:
    #       requiredDuringSchedulingIgnoredDuringExecution:
    #         - labelSelector:
    #             matchExpressions:
    #               - key: app
    #                 operator: In
    #                 values:
    #                   - zk-logging
    #           topologyKey: kubernetes.io/hostname
      containers:
        - env:
            - name: ZOO_SERVERS
              value: >-
                server.1=zk-logging-0.zk-logging-headless.logging.svc.cluster.local:2888:3888;2181
                server.2=zk-logging-1.zk-logging-headless.logging.svc.cluster.local:2888:3888;2181
                server.3=zk-logging-2.zk-logging-headless.logging.svc.cluster.local:2888:3888;2181
            - name: ZOO_4LW_COMMANDS_WHITELIST
              value: 'ruok,srvr,conf,stat'
            - name: TZ
              value: Asia/Shanghai
          image: 'zookeeper:3.5.7'
          imagePullPolicy: Always
          name: zk-logging
          ports:
            - containerPort: 2181
              name: client
              protocol: TCP
            - containerPort: 2888
              name: server
              protocol: TCP
            - containerPort: 3888
              name: leader-election
              protocol: TCP
          resources:
            requests:
              cpu: 500m
              memory: 500Mi
          volumeMounts:
            - mountPath: /data
              name: datadir
      dnsPolicy: ClusterFirst
      initContainers:
        - command:
            - sh
            - '-c'
            - >-
              echo $(( $(echo ${POD_NAME} | awk -F "-" '{print $NF}') + 1 )) >
              /data/myid
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
          image: 'busybox:1.31.0'
          imagePullPolicy: IfNotPresent
          name: init-zk-logging
          resources: {}
          volumeMounts:
            - mountPath: /data
              name: datadir
    #   nodeSelector:
        # node-role.kubernetes.io/compute: 'true'
      restartPolicy: Always
      securityContext:
        fsGroup: 1000
        runAsUser: 1000
    #   serviceAccount: zk-logging-sa
    #   serviceAccountName: zk-logging-sa
      terminationGracePeriodSeconds: 30
  updateStrategy:
    type: RollingUpdate
  volumeClaimTemplates:
    - metadata:
        creationTimestamp: null
        name: datadir
      spec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 5Gi
        storageClassName: logging-storageclass

使用下面的命令完成部署：

1
kubectl apply -f zookeeper-cluster.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
# zookeeper-service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: zk-logging
  name: zk-logging-service
  namespace: logging
spec:
  ports:
    - name: client
      port: 2181
      protocol: TCP
      targetPort: 2181
  selector:
    app: zk-logging
  sessionAffinity: None
  type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: zk-logging
  name: zk-logging-headless
  namespace: logging
spec:
  clusterIP: None
  ports:
    - name: server
      port: 2888
      protocol: TCP
      targetPort: 2888
    - name: leader-election
      port: 3888
      protocol: TCP
      targetPort: 3888
  selector:
    app: zk-logging
  sessionAffinity: None
  type: ClusterIP

执行下面命令完成部署：

1
kubectl apply -f zookeeper-service.yaml

部署kafka

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
# kafka-cluster.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: kafka-logging
  namespace: logging
spec:
  podManagementPolicy: Parallel
  replicas: 3
  selector:
    matchLabels:
      app: kafka-logging
  serviceName: kafka-logging-service
  template:
    metadata:
      labels:
        app: kafka-logging
    spec:
    #   affinity:
    #     podAntiAffinity:
    #       requiredDuringSchedulingIgnoredDuringExecution:
    #         - labelSelector:
    #             matchExpressions:
    #               - key: app
    #                 operator: In
    #                 values:
    #                   - kafka-logging
    #           topologyKey: kubernetes.io/hostname
      containers:
        - env:
            - name: KAFKA_REPLICAS
              value: '3'
            - name: KAFKA_ZK_LOCAL
              value: 'false'
            - name: KAFKA_HEAP_OPTS
              value: '-Xmx1024M -Xms1024M'
            - name: SERVER_num_partitions
              value: '3'
            - name: SERVER_delete_topic_enable
              value: 'true'
            - name: SERVER_log_retention_hours
              value: '2147483647'
            - name: KAFKA_ADVERTISED_PORT
              value: '9092'
            - name: SERVER_zookeeper_connection_timeout_ms
              value: '6000'
            - name: SERVER_log_dirs
              value: /opt/kafka/data/logs
            - name: KAFKA_ADVERTISED_HOST_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: KAFKA_ZOOKEEPER_CONNECT
              value: 'zk-logging-service.logging.svc.cluster.local:2181'
            - name: BROKER_ID_COMMAND
              value: 'hostname | awk -F ''-'' ''{print $NF}'''
            - name: KAFKA_PORT_NUMBER
              value: '9092'
            - name: KAFKA_ADVERTISED_HOST_NAME
              value: >-
                $(KAFKA_ADVERTISED_HOST_NAME).kafka-logging-service.logging.svc.cluster.local
            - name: TZ
              value: Asia/Shanghai
          image: 'wurstmeister/kafka:2.12-2.5.0'
          imagePullPolicy: Always
          name: kafka-logging
          ports:
            - containerPort: 9092
              name: server
              protocol: TCP
          resources:
            requests:
              cpu: 500m
              memory: 500Mi
          volumeMounts:
            - mountPath: /kafka
              name: datadir
      dnsPolicy: ClusterFirst
    #   nodeSelector:
    #     node-role.kubernetes.io/compute: 'true'
      restartPolicy: Always
      securityContext:
        fsGroup: 0
        runAsUser: 0
    #   serviceAccount: kafka-logging-sa
    #   serviceAccountName: kafka-logging-sa
      terminationGracePeriodSeconds: 30
  updateStrategy:
    type: RollingUpdate
  volumeClaimTemplates:
    - metadata:
        creationTimestamp: null
        name: datadir
      spec:
        accessModes:
          - ReadWriteOnce
        resources:
          requests:
            storage: 20Gi
        storageClassName: logging-storageclass

使用下面的命令完成部署：

1
kubectl apply -f kafka-cluster.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
# kafka-service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app: kafka-logging
  name: kafka-logging-service
  namespace: logging
spec:
  clusterIP: None
  ports:
    - name: server
      port: 9092
      protocol: TCP
      targetPort: 9092
  selector:
    app: kafka-logging
  sessionAffinity: None
  type: ClusterIP

执行下面命令完成部署：

1
kubectl apply -f kafka-service.yaml

kafka-manager是kafka的一个web管理平台，这里部署一下方便在有需要时进行管理。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
# kafka-manager.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: kafka-manager
  name: kafka-manager
  namespace: logging
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kafka-manager
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: kafka-manager
    spec:
      containers:
        - env:
            - name: ZK_HOSTS
              value: 'zk-logging-service.logging.svc:2181'
            - name: TZ
              value: Asia/Shanghai
          image: 'kafkamanager/kafka-manager:2.0.0.2'
          imagePullPolicy: IfNotPresent
          name: kafka-manager
          ports:
            - containerPort: 9000
              name: tcp-9000
              protocol: TCP
          resources: {}
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: kafka-manager
  name: kafka-manager
  namespace: logging
spec:
  ports:
    - name: kafka-manager
      port: 9000
      protocol: TCP
      targetPort: 9000
  selector:
    app: kafka-manager
  sessionAffinity: None
  type: ClusterIP

执行下面命令完成部署：

1
kubectl apply -f kafka-manager.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
# kafka-manager-ingress.yaml
kind: Ingress
metadata:
   name: kafka-manager
   namespace: logging
spec:
   rules:
   - host: kafka-manager.example.com
     http:
       paths:
       - path: /
         backend:
          serviceName: kafka-manager
          servicePort: 9000

执行下面的命令完成创建：

1
kubectl apply -f kafka-manager-ingress.yaml

检查服务

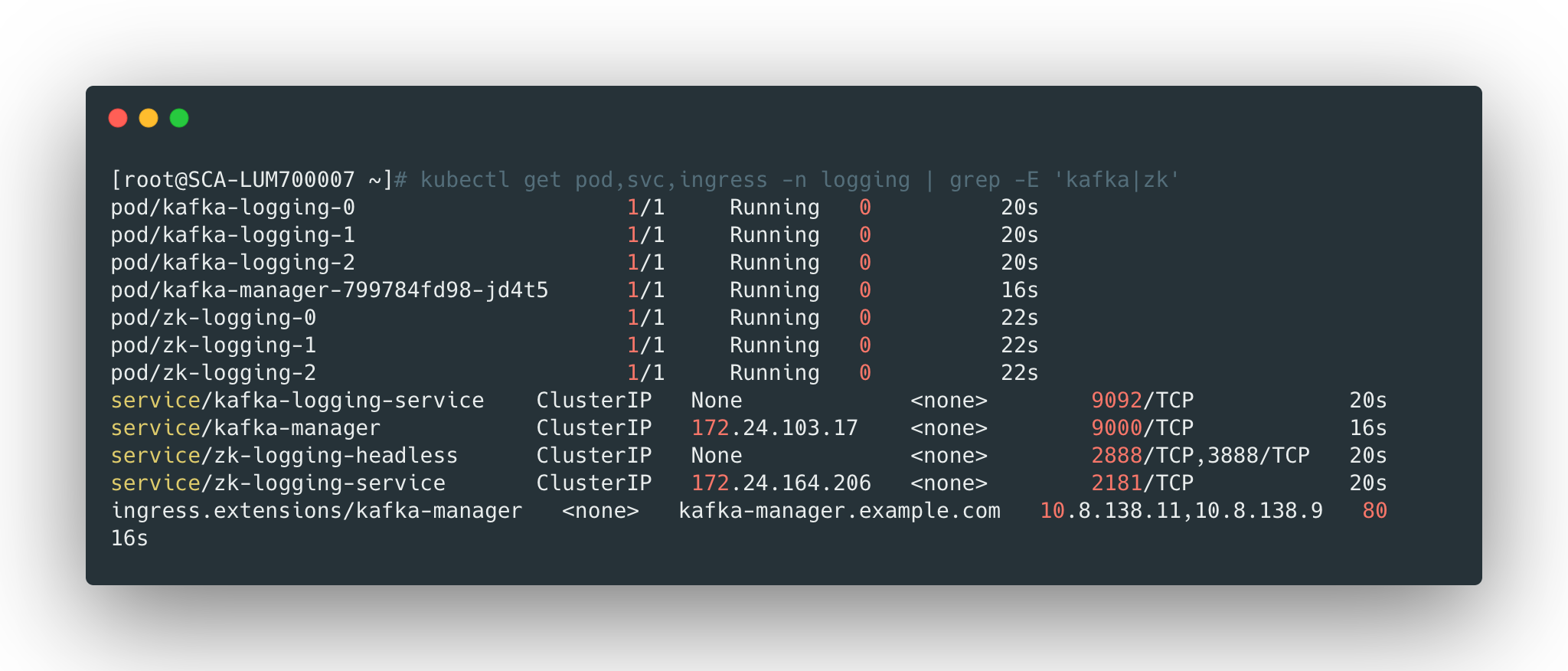

检查所有的pod都正常运行：

1
kubectl get pod,svc,ingress -n logging | grep -E 'kafka|zk'

创建nginx配置

在nginx服务器上增加kafka-manager配置，代理kafka服务：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# /etc/nginx/conf.d/kafka-manager.conf
upstream ingress-80 {
    server 10.8.138.9:80 max_fails=3 fail_timeout=5s weight=2;
    server 10.8.138.11:80 max_fails=3 fail_timeout=5s weight=2;
}

server {
    listen 80;
    server_name kafka-manager.example.com;
    rewrite ^(.*) https://$host$1 permanent;
}

server {
    listen 443 ssl;
    server_name kafka-manager.example.com;

    ssl_certificate /etc/nginx/ssl/nginx.crt;
    ssl_certificate_key /etc/nginx/ssl/nginx.key;

    access_log /var/log/nginx/kafka-manager.example.com_access.log main;
    error_log /var/log/nginx/kafka-manager.example.com_error.log;

    location / {
      proxy_pass http://ingress-80;
      proxy_set_header Host $http_host;
    }

    include conf.d/common.ini;
}

检查配置并重载nginx：

1
2
nginx -t
nginx -s reload

访问并配置kafka-manager

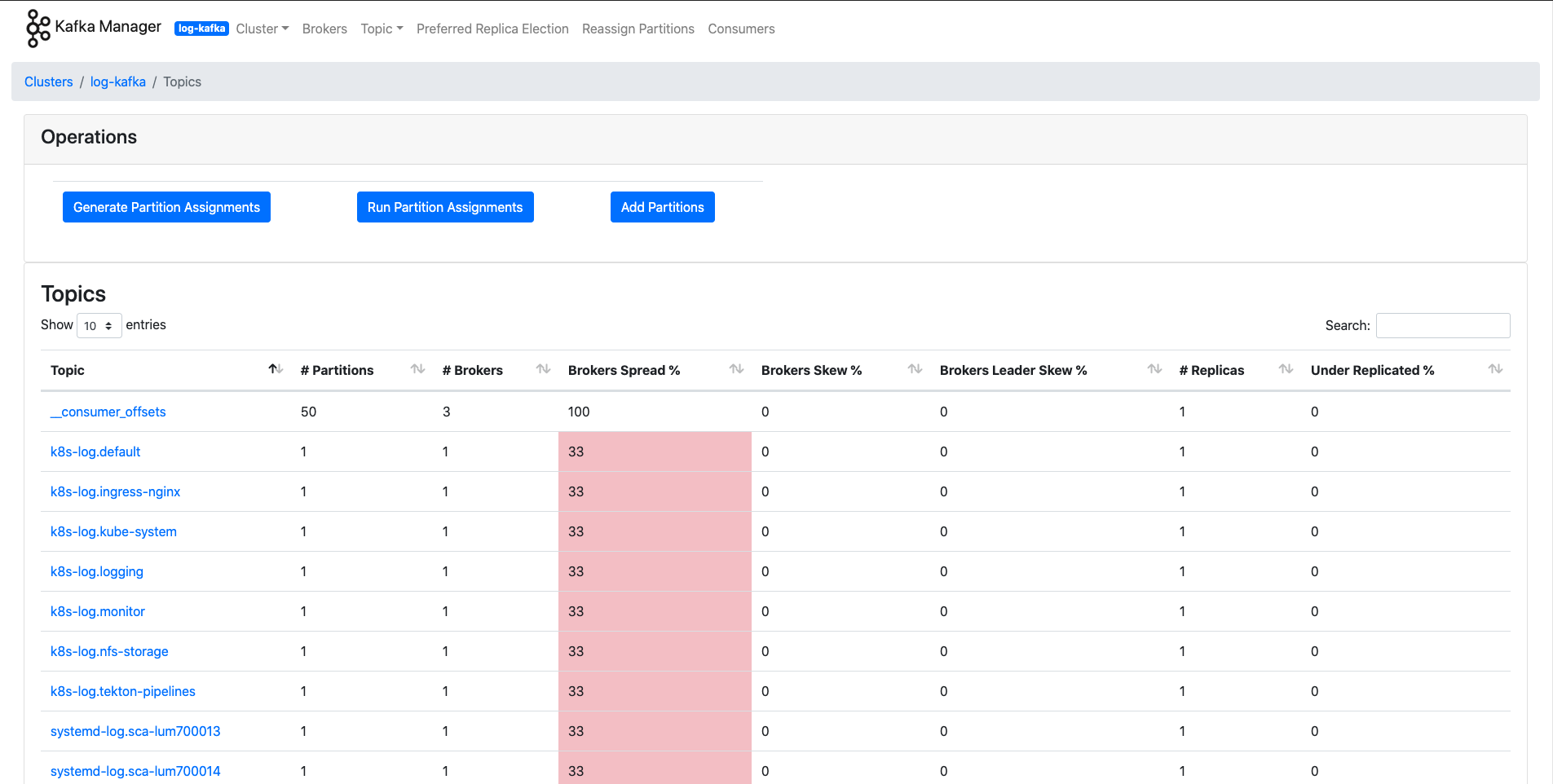

通过浏览器访问kafka-manager的域名kafka-manager.example.com即可进入kafka-manager的控制页面，点击上边的Cluster，然后选择Add Cluster添加kafka集群，需要填入下面几个信息：

最后点击save后集群信息添加完成。


部署logstash

创建logstash配置

logstash相关的配置文件可以在logstash配置文件 找到，这里需要将efk-template.json, init_efk.sh, k8s-log.json, logstash.conf, logstash.yml, systemd-log.json 放入一个目录下，例如logstash-conf下：

  • efk-template.json：定义的是针对索引的日志策略；
  • init_efk.sh：操作es ，初始化一些配置；
  • k8s-log.json：收集k8s日志的配置；
  • logstash.conf：logstash的流水线配置；
  • logstash.yml：logstash配置文件；
  • systemd-log.json：收集系统日志的配置；

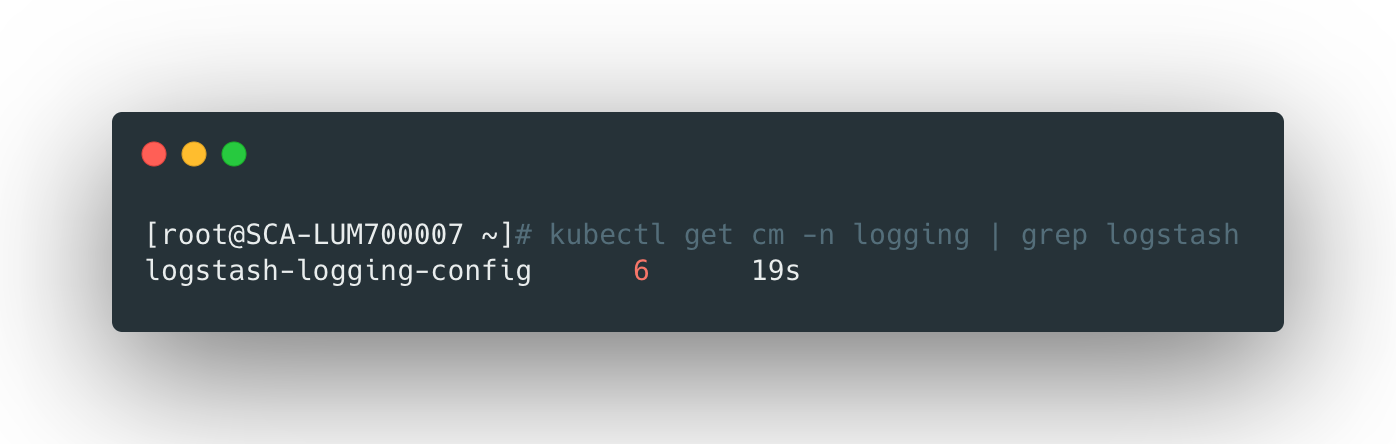

然后执行下面的命令：

1
kubectl create configmap logstash-logging-config --from-file=./logstash-conf/ -n logging

部署logstash

logstash不需要很多实例，所以使用deployment方式部署，可以根据需要进行扩展：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
# logstash-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: logstash-logging
  name: logstash-logging
  namespace: logging
spec:
  replicas: 3
  selector:
    matchLabels:
      app: logstash-logging
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: logstash-logging
      name: logstash-logging
    spec:
      containers:
        - env:
            - name: TZ
              value: Asia/Shanghai
            - name: ELASTIC_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: elastic
                  name: es-logging-password
          image: 'logstash:7.8.0'
          imagePullPolicy: IfNotPresent
          name: logstash-logging
          ports:
            - containerPort: 5044
              name: tcp-5044
              protocol: TCP
            - containerPort: 9600
              name: tcp-9600
              protocol: TCP
          resources: {}
          securityContext:
            privileged: true
            runAsUser: 1000
          volumeMounts:
            - mountPath: /usr/share/logstash/config/logstash.yml
              name: logstash-config
              subPath: logstash.yml
            - mountPath: /usr/share/logstash/pipeline/logstash.conf
              name: logstash-config
              subPath: logstash.conf
            - mountPath: /usr/share/logstash/config/efk-template.json
              name: logstash-config
              subPath: efk-template.json
      dnsPolicy: ClusterFirst
      initContainers:
        - command:
            - sh
            - '-c'
            - /bin/init_efk.sh
          env:
            - name: ELASTIC_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: elastic
                  name: es-logging-password
          image: 'curlimages/curl:latest'
          imagePullPolicy: Always
          name: init-efk
          resources: {}
          volumeMounts:
            - mountPath: /bin/init_efk.sh
              name: logstash-config
              subPath: init_efk.sh
            - mountPath: /tmp/k8s-log.json
              name: logstash-config
              subPath: k8s-log.json
            - mountPath: /tmp/systemd-log.json
              name: logstash-config
              subPath: systemd-log.json
    #   nodeSelector:
    #     node-role.kubernetes.io/compute: 'true'
      restartPolicy: Always
      securityContext:
        fsGroup: 1000
        runAsUser: 1000
        seLinuxOptions:
          level: 's0:c13,c12'
      terminationGracePeriodSeconds: 30
      volumes:
        - configMap:
            defaultMode: 493
            name: logstash-logging-config
          name: logstash-config

直接运行下面的命令部署logstash：

1
kubectl apply -f logstash-deployment.yaml

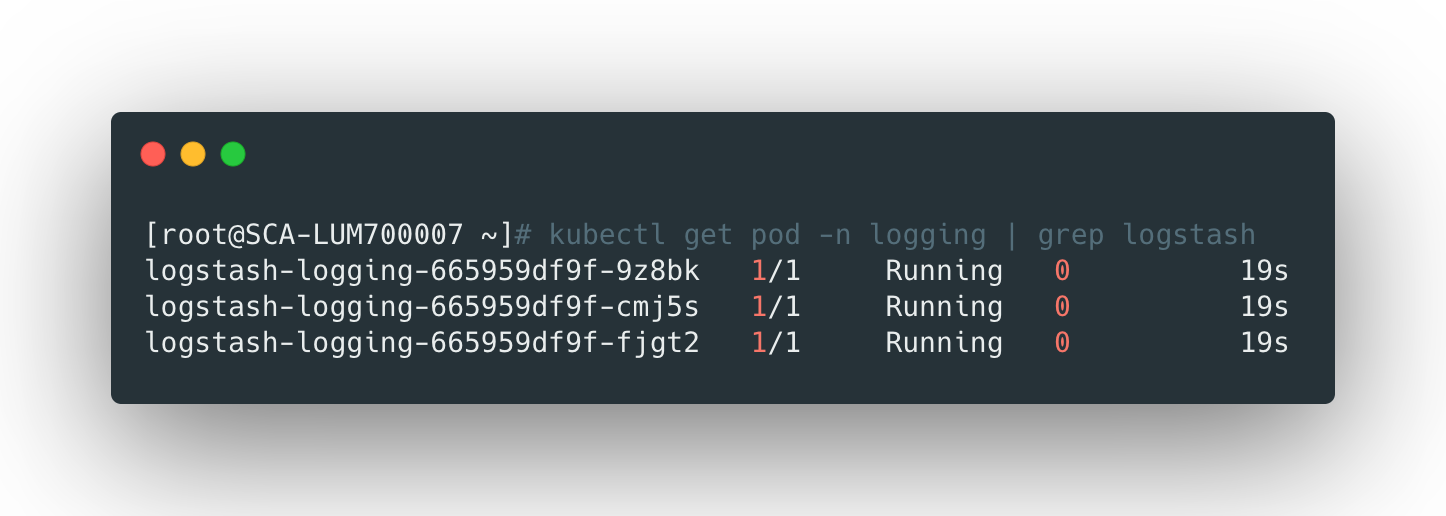

检查服务

确保所有的pod都处于Running状态：

1
kubectl get pod -n logging | grep logstash

部署filebeat

部署相关资源

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
# filebeat-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: filebeat-logging-sa
  namespace: logging
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: filebeat-logging-bind
subjects:
- kind: ServiceAccount
  name: filebeat-logging-sa
  namespace: logging
roleRef:
  kind: ClusterRole
  name: filebeat-logging-clusterrole
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: filebeat-logging-clusterrole
rules:
- apiGroups: [""] # "" indicates the core API group
  resources:
  - namespaces
  - pods
  verbs:
  - get
  - watch
  - list

执行下面的命令完成创建：

1
kubectl apply -f filebeat-rbac.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
# filebeat-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: filebeat-logging-config
  namespace: logging
data:
  filebeat.yml: |
    name: "filebeat-k8s"
    filebeat.registry.path: /var/log/filebeat/registry
    logging.level: warning
    filebeat.inputs:
    - type: container
      scan_frequency: 5s
      enable: true
      symlinks: false
      harvester_buffer_size: 16384
      max_bytes: 10485760
      paths:
      - /var/lib/docker/containers/*/*-json.log
      multiline.pattern: '^[[:space:]]+.+\b|^Caused by:|^[[:alpha:]]+.+Exception:\s\w+.+|^[[:alpha:]]+.+Exception$|^Exception\s\w+.+'
      multiline.negate: false
      multiline.match: after
      multiline.max_lines: 500
      multiline.timeout: 5s
      fields_under_root: true
      overwrite_keys: true

    - type: log
      scan_frequency: 5s
      enable: true
      symlinks: false
      harvester_buffer_size: 16384
      max_bytes: 10485760
      paths:
      - /var/log/messages
      fields_under_root: true
      overwrite_keys: true

    processors:
      - add_kubernetes_metadata:
          in_cluster: true
      - add_host_metadata:
          netinfo.enabled: true
      - add_locale: ~
      - add_fields:
          target: host
          fields:
            name: ${NODE_NAME}
            ip: ${NODE_IP}
            podip: ${POD_IP}
      - drop_fields:
          fields: ["agent.ephemeral_id","agent.id","log.offset","suricata.eve.timestamp","host.os.codename","host.hostname"]
          ignore_missing: false

    output.kafka:
      hosts: ["kafka-logging-service:9092"]
      version: 2.0.0
      worker: 3
      topics:
        - topic: "k8s-log.%{[kubernetes.namespace]}"
          when.contains:
            input.type: "container"
        - topic: "systemd-log.%{[host.name]}"
          when.contains:
            input.type: "log"
      partition.round_robin:
        reachable_only: false
      required_acks: 1
      compression: gzip
      max_message_bytes: 1000000


    xpack.monitoring.enabled: true
    xpack.monitoring.elasticsearch.hosts: [ "es-logging-service:9200" ]
    xpack.monitoring.elasticsearch.protocol: "http"
    xpack.monitoring.elasticsearch.username: "elastic"
    xpack.monitoring.elasticsearch.password: "${ELASTIC_PASSWORD}"

在配置文件中，指定filebeat去读取docker日志和系统日志，并将日志发送给kafka。filebeat本身不对日志进行处理。执行下面的命令完成创建：

1
kubectl apply -f filebeat-configmap.yaml

每一个工作节点都需要收集日志，所以使用daemonset方式进行部署：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
# fileat-daemonset.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    app: filebeat-logging
    version: v1
  name: filebeat-logging
  namespace: logging
spec:
  selector:
    matchLabels:
      app: filebeat-logging
      version: v1
  template:
    metadata:
      labels:
        app: filebeat-logging
        version: v1
    spec:
      containers:
        - args:
            - '-c'
            - /home/filebeat-config/filebeat.yml
            - '-e'
          env:
            - name: TZ
              value: Asia/Shanghai
            - name: POD_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.podIP
            - name: NODE_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: spec.nodeName
            - name: NODE_IP
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: status.hostIP
            - name: ELASTIC_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: elastic
                  name: es-logging-password
          image: 'elastic/filebeat:7.6.8'
          imagePullPolicy: IfNotPresent
          name: filebeat-logging
          securityContext:
            privileged: true
            runAsUser: 0
          volumeMounts:
            - mountPath: /var/log
              name: filebeat-storage
            - mountPath: /var/log/pods
              name: varlogpods
            - mountPath: /var/lib/docker/containers
              name: varlibdockercontainers
            - mountPath: /home/filebeat-config
              name: filebeat-volume
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      serviceAccount: filebeat-logging-sa
      serviceAccountName: filebeat-logging-sa
      terminationGracePeriodSeconds: 30
      volumes:
        - hostPath:
            path: /var/log
            type: ''
          name: filebeat-storage
        - hostPath:
            path: /var/log/pods
            type: ''
          name: varlogpods
        - hostPath:
            path: /var/lib/docker/containers
            type: ''
          name: varlibdockercontainers
        - configMap:
            defaultMode: 420
            name: filebeat-logging-config
          name: filebeat-volume
  updateStrategy:
    rollingUpdate:
      maxUnavailable: 1
    type: RollingUpdate

在yaml文件中，将/var/lib/docker/containers和/var/log挂载到了容器中，方便容器进行日志收集。

1
kubectl apply -f filebeat-daemonset.yaml

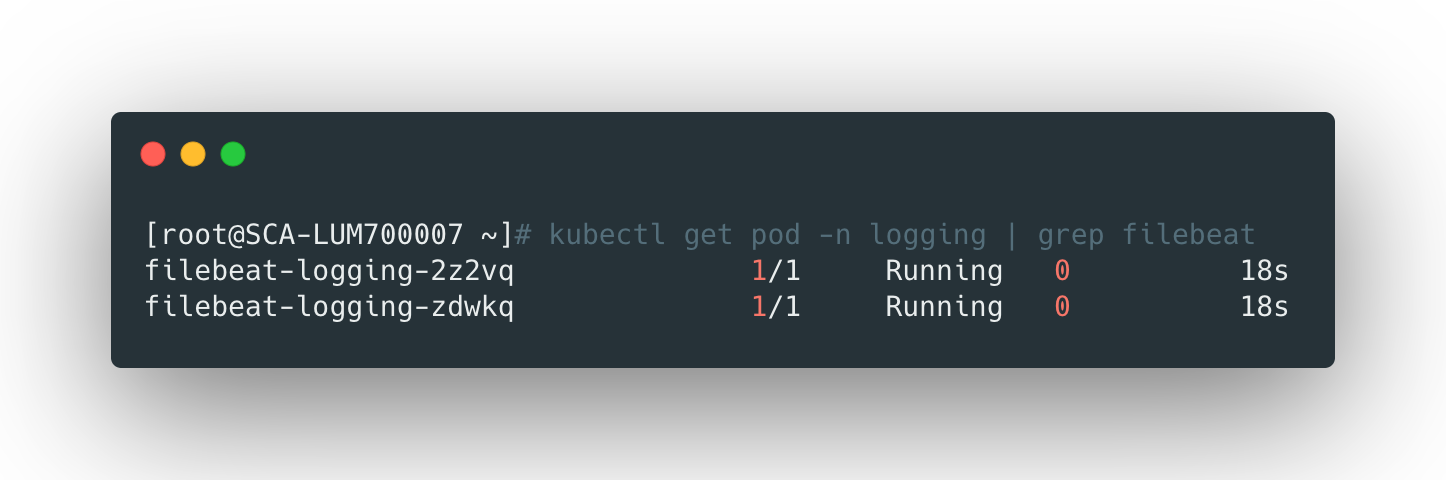

检查服务

确保所有pod都正常运行：

1
kubectl get pod -n logging | grep filebeat

部署kibana

部署相关资源

Kibana相关的配置文件可以在kibana配置文件 找到，这里需要将init_kibana.sh 放入一个目录下，例如kibana-conf下，然后执行下面的命令：

1
kubectl create configmap kibana-logging-init-config --from-file=./kibana-conf/init_kibana.sh -n logging
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
# kibana-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: kibana-logging-config
  namespace: logging
data:
  kibana.yml: |
    server.port: 5601
    server.host: "0.0.0.0"
    server.name: "kibana-logging"
    elasticsearch.hosts: ["http://es-logging-service:9200"]
    xpack.monitoring.ui.container.elasticsearch.enabled: true
    xpack.security.enabled: true
    elasticsearch.username: "kibana"
    elasticsearch.password: "${KIBANA_PASSWORD}"
    elasticsearch.requestHeadersWhitelist: [ 'es-security-runas-user',
    'authorization', 'X-Proxy-Remote-User', 'x-forwarded-for',
    'x-forwarded-access-token' ]
    elasticsearch.requestTimeout: 300000
    kibana.index: ".kibana"
    logging.quiet: true
  kibana_check.sh: |
    #!/bin/bash
    KIBANA_REST_BASEURL=http://localhost:5601/login
    EXPECTED_RESPONSE_CODE=200
    max_time="${max_time:-4}"

    response_code="$(
        curl --silent                          \
             --request HEAD                    \
             --head                            \
             --output /dev/null                \
             --max-time "${max_time}"          \
             --write-out '%{response_code}'    \
             "${KIBANA_REST_BASEURL}"
    )"

    if [ "${response_code}" == "${EXPECTED_RESPONSE_CODE}" ]; then
        exit 0
    else
        echo "Kibana node is not ready to accept HTTP requests yet [response code: ${response_code}]"
        exit 1
    fi

执行下面的命令完成部署：

1
kubectl apply -f kibana-config.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
# kibana-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: kibana-logging
  name: kibana-logging
  namespace: logging
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kibana-logging
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  template:
    metadata:
      labels:
        app: kibana-logging
      name: kibana-logging
    spec:
      containers:
        - env:
            - name: NODE_NAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: TZ
              value: Asia/Shanghai
            - name: KIBANA_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: elastic
                  name: es-logging-password
          image: 'kibana:7.8.0'
          name: kibana-logging
          imagePullPolicy: IfNotPresent
          livenessProbe:
            exec:
              command:
                - sh
                - '-c'
                - /usr/share/kibana/config/kibana_check.sh
            failureThreshold: 3
            initialDelaySeconds: 60
            periodSeconds: 20
            successThreshold: 1
            timeoutSeconds: 1
          ports:
            - containerPort: 5601
              name: tcp-5601
              protocol: TCP
          readinessProbe:
            exec:
              command:
                - sh
                - '-c'
                - /usr/share/kibana/config/kibana_check.sh
            failureThreshold: 3
            initialDelaySeconds: 15
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          resources:
            limits:
              cpu: '2'
              memory: 2Gi
            requests:
              cpu: 500m
              memory: 500Mi
          volumeMounts:
            - mountPath: /usr/share/kibana/config/kibana.yml
              name: kibana-config
              subPath: kibana.yml
            - mountPath: /usr/share/kibana/config/kibana_check.sh
              name: kibana-config
              subPath: kibana_check.sh
      dnsPolicy: ClusterFirst
      initContainers:
        - command:
            - sh
            - '-c'
            - /bin/init_kibana.sh
          env:
            - name: ELASTIC_PASSWORD
              valueFrom:
                secretKeyRef:
                  key: elastic
                  name: es-logging-password
          image: 'curlimages/curl:latest'
          imagePullPolicy: Always
          name: init-kibana
          resources: {}
          volumeMounts:
            - mountPath: /bin/init_kibana.sh
              name: kibana-init
              subPath: init_kibana.sh
    #   nodeSelector:
    #     node-role.kubernetes.io/compute: 'true'
      restartPolicy: Always
      terminationGracePeriodSeconds: 30
      volumes:
        - configMap:
            defaultMode: 493
            name: kibana-logging-config
          name: kibana-config
        - configMap:
            defaultMode: 493
            name: kibana-logging-init-config
          name: kibana-init

执行下面的命令完成部署：

1
kubectl apply -f kibana-deployment.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
# kibana-service.yaml
apiVersion: v1
kind: Service
metadata:
  name: kibana-logging-service
  namespace: logging
spec:
  ports:
    - name: tcp-5601
      port: 5601
      protocol: TCP
      targetPort: 5601
  selector:
    app: kibana-logging
  sessionAffinity: None
  type: ClusterIP

执行下面的命令完成创建：

1
kubectl apply -f kibana-service.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# kibana-ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
   name: kibana
   namespace: logging
spec:
   rules:
   - host: kibana.example.com
     http:
       paths:
       - path: /
         backend:
          serviceName: kibana-logging-service
          servicePort: 5601

执行下面的命令完成创建：

1
kubectl apply -f kibana-ingress.yaml

配置nginx暴露服务

新增下面的nginx配置:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# /etc/nginx/conf.d/kibana.conf
upstream ingress-80 {
    server 10.8.138.9:80 max_fails=3 fail_timeout=5s weight=2;
    server 10.8.138.11:80 max_fails=3 fail_timeout=5s weight=2;
}

server {
    listen 80;
    server_name kibana.example.com;
    rewrite ^(.*) https://$host$1 permanent;
}

server {
    listen 443 ssl;
    server_name kibana.example.com;

    ssl_certificate /etc/nginx/ssl/nginx.crt;
    ssl_certificate_key /etc/nginx/ssl/nginx.key;

    access_log /var/log/nginx/kibana.example.com_access.log main;
    error_log /var/log/nginx/kibana.example.com_error.log;

    location / {
      proxy_pass http://ingress-80;
      proxy_set_header Host $http_host;
    }

    include conf.d/common.ini;
}

检查并重载nginx：

1
2
nginx -t
nginx -s reload

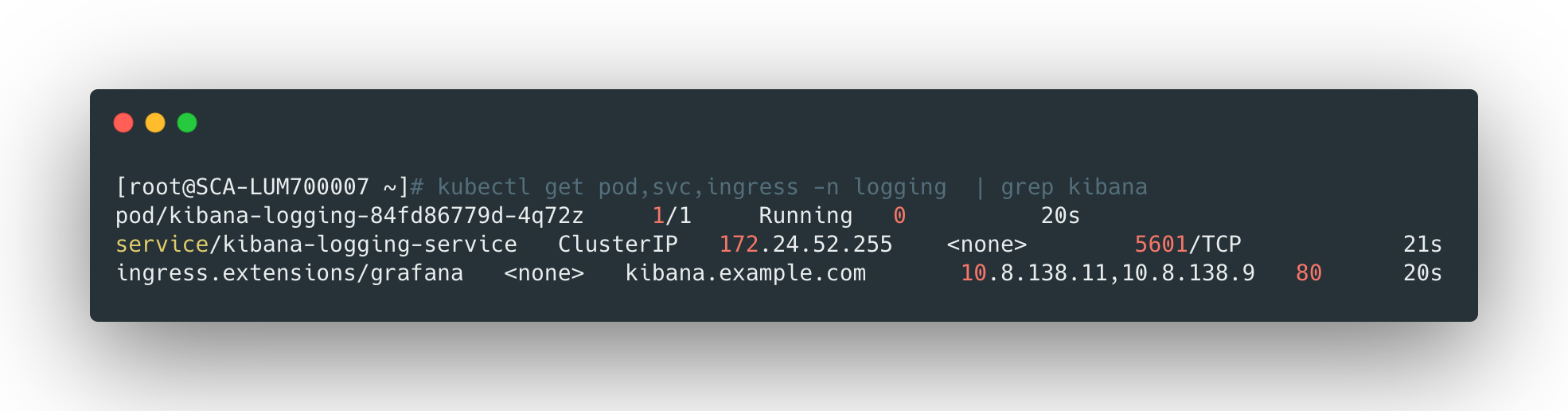

检查服务

确保相关pod都处在Running状态：

1
kubectl get pod,svc,ingress -n logging | grep kibana

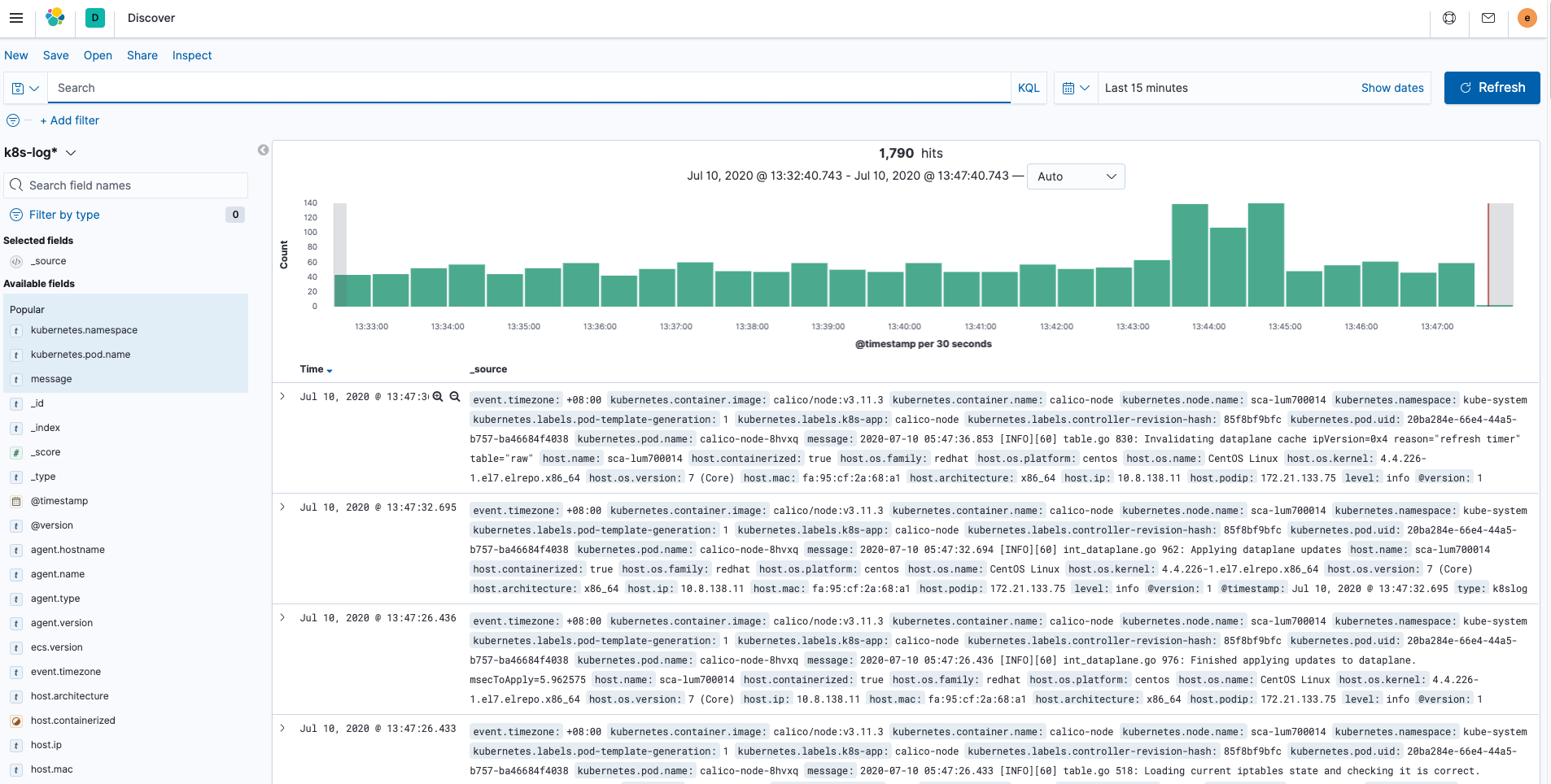

访问页面

通过浏览器访问kibana.example.com即可进入kibana的页面，输入在部署elasticsearch中设置的初始账号密码：elastic/elastic。然后在kibana中创建Index patterns就可以了。

访问kafka-manager观察，发现消息topic也创建出来并且有消息在队列中被logstash消费：
